From Existing Idea to Upgraded Sea Trials: Applying the Modern Design Process to Vessel Conversions and Refits
A Scientific Analysis by SENA SHIP DESIGN
The transformation of existing vessels through conversion and refit projects represents a strategic approach to maritime asset optimization. By applying modern design methodologies—particularly the iterative design spiral approach—operators can achieve cost-effective vessel upgrades while maintaining rigorous technical standards and regulatory compliance.
This comprehensive guide explores how contemporary design processes, advanced engineering tools, and systematic project management can accelerate vessel conversions from initial concept through successful sea trials. The modern design spiral methodology enables iterative refinement of conversion designs, ensuring optimal solutions that balance technical performance, regulatory requirements, and economic viability.

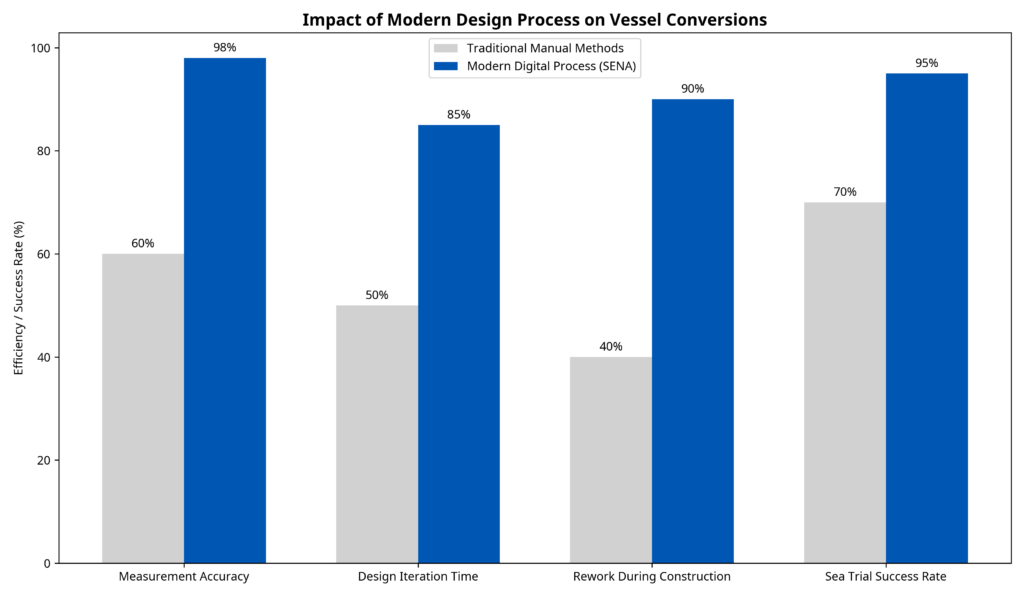

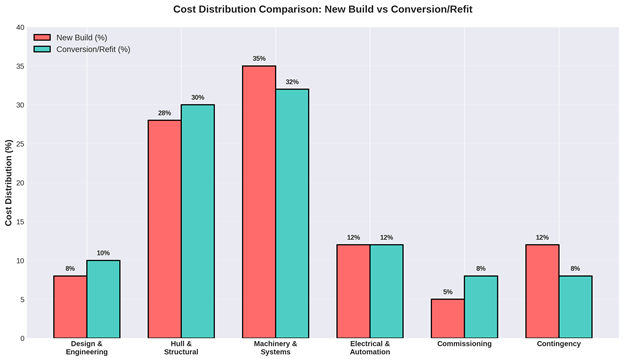

Key findings from this analysis demonstrate that well-executed conversions can be completed 40-60% faster than new builds, with capital costs reduced by 45-55%, while achieving equivalent or superior performance outcomes. The integration of Computer-Aided Design (CAD), Computational Fluid Dynamics (CFD), and Finite Element Analysis (FEA) enables rapid design iteration and validation, reducing technical risk and ensuring successful sea trials. SENA Ship Design specializes in navigating these complexities, providing comprehensive engineering solutions that ensure efficient, cost-effective, and compliant vessel transformations.
1. Introduction: The Evolution of Vessel Conversions.
Vessel conversions and refits represent a mature and economically viable alternative to new construction, particularly in today’s rapidly evolving maritime industry. The strategic conversion of existing vessels—whether for repurposing, life extension, regulatory compliance, or performance enhancement—requires a systematic approach grounded in modern engineering methodologies.
The traditional approach to vessel conversions often relied on ad-hoc design modifications and reactive problem-solving. Contemporary best practices, however, apply structured design processes that mirror those used in new ship design, ensuring systematic optimization and risk mitigation throughout the conversion lifecycle.
1.1. Scope of Vessel Conversions
- Repurposing: Converting vessels from one operational role to another (e.g., tanker to supply vessel, supply vessel to crew transfer vessel)
- Life Extension: Structural upgrades and system modernization to extend operational life beyond original design life
- Regulatory Compliance: Upgrades to meet new environmental regulations (MARPOL, EEDI) or safety standards
- Performance Enhancement: Modifications to improve speed, efficiency, cargo capacity, or operational flexibility
- Accommodation Refurbishment: Modernization of crew and passenger spaces to meet contemporary standards
- Alternative Fuel Integration: System modifications to enable operation on LNG, methanol, biofuels, or other alternative fuels
1.2. The Modern Design Process: A Paradigm Shift
SENA Ship Design employs a modern, integrated design process that mitigates these traditional challenges by embracing digital technologies and concurrent engineering principles. This approach ensures accuracy, efficiency, and predictability throughout the conversion and refit lifecycle.

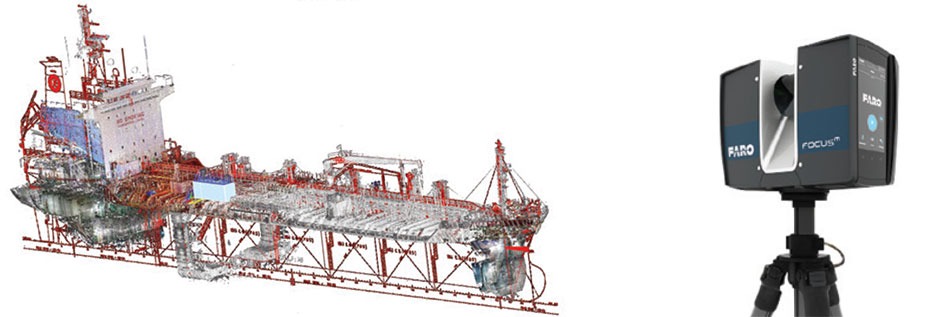

1.2.1. Precision Data Capture: 3D Laser Scanning.
The foundation of any successful modern conversion project is accurate data capture. Traditional methods of manual measurement are often time-consuming and prone to error. SENA Ship Design utilizes 3D laser scanning to capture the “as-is” state of the vessel with millimeter precision. This process generates a dense point cloud, which is then converted into a highly accurate 3D CAD model. This digital twin of the existing vessel serves as the single source of truth for all subsequent design and engineering activities, eliminating discrepancies and facilitating precise planning.

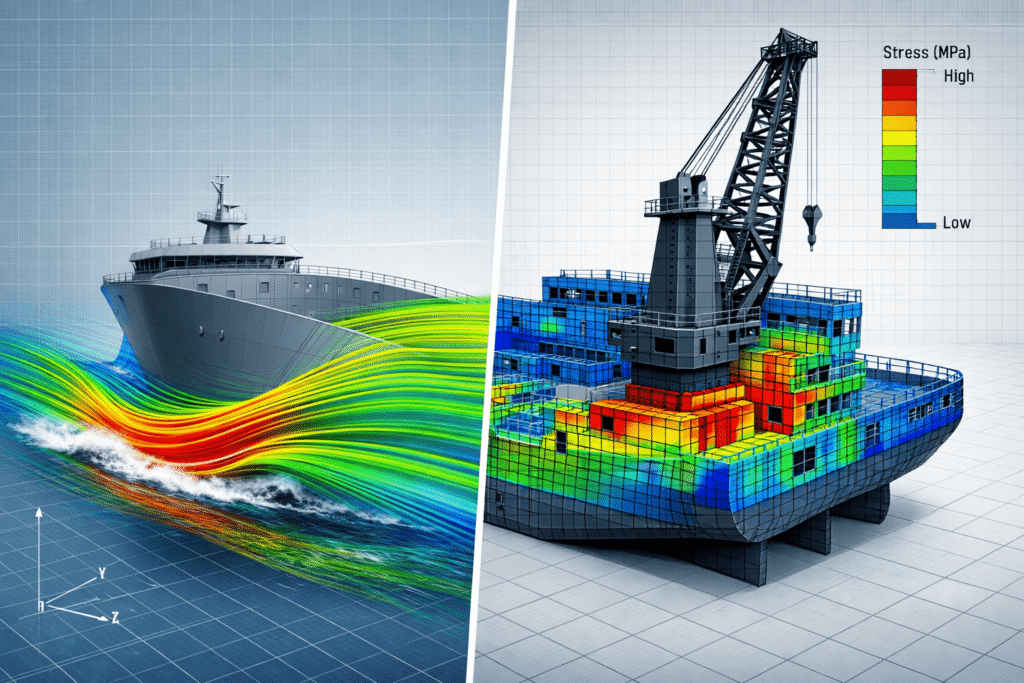

1.2.2. Advanced Engineering: CFD and FEA for Optimization.
With a precise 3D model in hand, advanced engineering tools like Computational Fluid Dynamics (CFD) and Finite Element Analysis (FEA) become indispensable. These simulation tools allow for virtual testing and optimization of proposed modifications:
- CFD: Used to analyze the hydrodynamic performance of hull modifications, such as adding a bulbous bow, lengthening the vessel, or optimizing propeller design. This ensures that the upgraded vessel achieves desired speed, fuel efficiency, and seakeeping characteristics.
- FEA: Critical for assessing the structural integrity of the vessel after modifications. Whether adding new equipment, strengthening decks, or reconfiguring internal spaces, FEA identifies stress concentrations and ensures that the new structure can safely withstand operational loads and comply with classification rules.
1.2.3. Streamlined Class Approval.
The integration of 3D modeling, CFD, and FEA significantly streamlines the class approval process. Classification societies can directly review and verify the digital models and simulation results, reducing the need for extensive 2D drawing submissions and accelerating the approval timeline. This proactive approach ensures that all modifications meet regulatory requirements from the outset, minimizing costly rework.
2. The Design Spiral Applied to Conversions.
The design spiral is a fundamental methodology in modern ship design that applies equally well to vessel conversions. Rather than attempting to finalize all design decisions in a single pass, the design spiral employs an iterative approach where each cycle refines the design based on accumulated knowledge and analysis results.

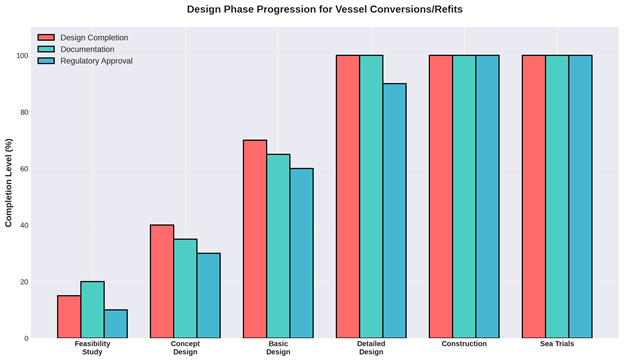

2.1. Design Spiral Phases.
The design spiral for vessel conversions typically comprises four concentric loops, each representing a progressively more detailed design stage:
- Concept Design (Outer Loop): Feasibility assessment, preliminary layout, initial cost and schedule estimation, regulatory consultation
- Basic Design (Middle Loop): Detailed system arrangement, structural analysis, regulatory compliance verification, Approval in Principle (AIP)
- Detailed Design (Inner Loop): Production-ready drawings, complete specifications, construction procedures, detailed cost and schedule
- Production Design (Innermost Loop): Shipyard-specific optimization, material specifications, fabrication sequences, quality procedures
2.2. The Modern Design Process: A Paradigm Shift
2.2.1. Feasibility Assessment and Planning
The feasibility assessment represents the critical first phase of any vessel conversion project. This phase determines whether the conversion is technically viable, economically justified, and capable of meeting regulatory requirements.
Key Assessment Components
- Existing vessel condition survey and structural integrity assessment
- Evaluation of hull form suitability for intended conversion
- Analysis of machinery space constraints and equipment compatibility
- Assessment of regulatory compliance pathways
- Preliminary cost estimation and financial analysis
- Schedule estimation and resource planning
- Identification of key technical risks and mitigation strategies
- Classification society consultation and approval pathway definition
2.2.2. Concept Design Phase
The concept design phase establishes the fundamental parameters of the conversion, including the scope of work, preliminary layouts, and initial performance targets. This phase typically spans 2-4 weeks and involves close collaboration between the owner, designer, and classification society.
Concept Design Deliverables
- Preliminary general arrangement drawings showing proposed modifications
- Preliminary systems diagrams (propulsion, electrical, HVAC, etc.)
- Initial weight and stability estimates
- Preliminary cost breakdown and schedule
- Identification of major structural modifications required
- Preliminary regulatory compliance assessment
- Risk register and mitigation strategies
- Approval in Principle (AIP) application to classification society
2.2.3. Basic Design Development
The basic design phase translates concept design decisions into detailed technical specifications. This phase involves comprehensive analysis of all vessel systems and structural modifications, typically spanning 4-6 weeks.
Basic Design Activities
- Detailed structural analysis using Finite Element Analysis (FEA)
- Hydrodynamic analysis using Computational Fluid Dynamics (CFD)
- Propulsion system selection and preliminary performance analysis
- Electrical load analysis and power generation sizing
- HVAC system design and thermal analysis
- Piping and systems routing optimization
- Stability and trim calculations
- Regulatory compliance verification
- Preparation of Basic Design Report for classification society
2.2.4. Detailed Design Engineering
The detailed design phase produces production-ready documentation suitable for shipyard fabrication. This phase typically spans 8-12 weeks and involves comprehensive technical specifications, construction procedures, and quality assurance protocols.
Detailed Design Deliverables
- Production drawings for all structural modifications
- Piping and instrumentation diagrams (P&ID) for all systems
- Electrical one-line diagrams and cable schedules
- Equipment datasheets and technical specifications
- Construction procedures and work sequences
- Material specifications and quality standards
- Inspection and test procedures
- Commissioning procedures and checklists
- Operation and maintenance manuals
- Spare parts lists and logistics planning

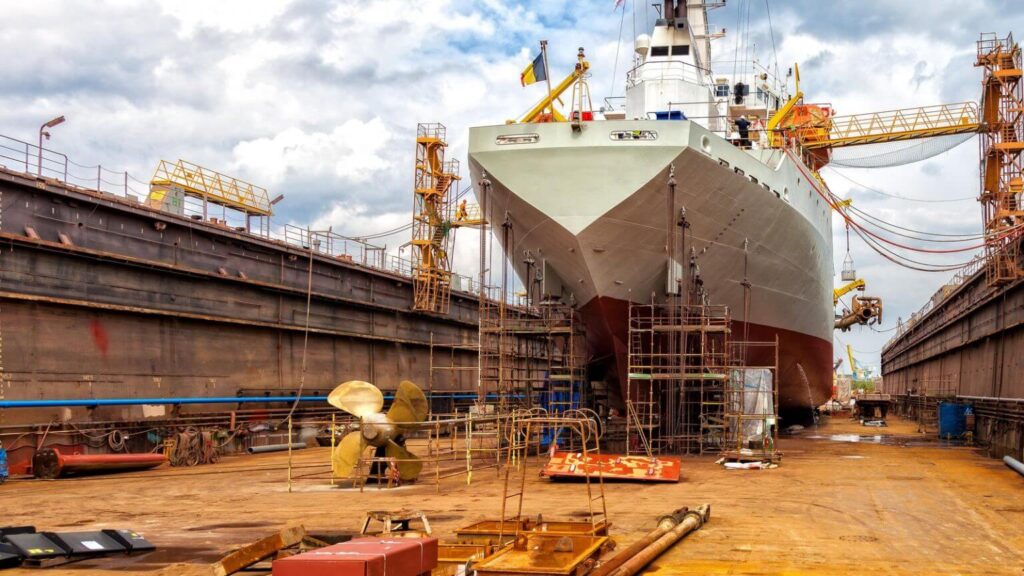

2.2.5.Construction and Installation
The construction phase involves the physical implementation of design modifications in the shipyard. This phase typically spans 3-6 months depending on conversion scope and typically includes structural modifications, system installations, and progressive testing.
Construction Activities
- Vessel preparation and dry-docking (if required)
- Structural modifications and welding
- Machinery installation and alignment
- Piping system fabrication and installation
- Electrical system installation and testing
- HVAC system installation and commissioning
- Accommodation refurbishment (if included)
- Progressive system testing and inspection
- Quality assurance and regulatory inspections
2.2.6.Sea Trials and Performance Verification
Sea trials represent the critical validation phase where all vessel systems are tested under operational conditions. Successful sea trials confirm that the converted vessel meets design specifications, regulatory requirements, and operational expectations.

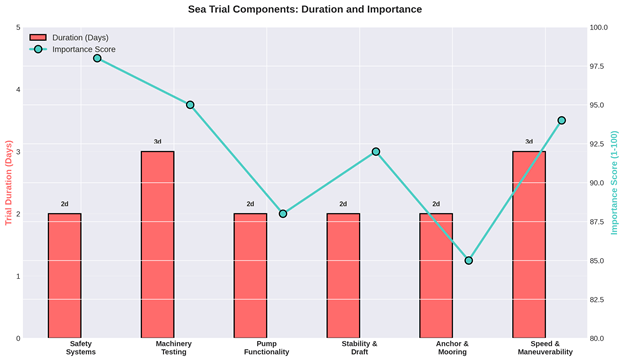

Sea Trial Components
- Safety Systems Verification: Testing of fire suppression systems, life-saving equipment, emergency alarms, and evacuation procedures
- Propulsion Testing: Main engine and auxiliary machinery operation at various speeds and load conditions
- Stability and Draft Verification: Confirmation of vessel stability, draft, and trim characteristics
- Maneuverability Testing: Evaluation of turning circles, course-keeping, and emergency stopping capability
- Pump Functionality: Testing of bilge, ballast, fire, and cooling water pumps
- Anchor and Mooring Systems: Verification of anchor deployment, windlass operation, and mooring equipment
- Navigation and Communication: Testing of radar, GPS, VHF, and integrated bridge systems
- Performance Data Collection: Recording of fuel consumption, speed, power, and environmental conditions
2.2.7.Commissioning and Delivery
Following successful sea trials, the vessel enters the commissioning phase where final adjustments, crew training, and operational handover occur. This phase typically spans 2-4 weeks and culminates in formal delivery to the owner.
Commissioning Activities
- Performance optimization and fine-tuning of all systems
- Comprehensive crew training on all vessel systems and procedures
- Documentation finalization and handover packages
- Final regulatory inspections and certification
- Spare parts and logistics support establishment
- Operational procedures and maintenance manual review
- Final acceptance trials and sign-off
- Formal delivery and vessel handover
3. SENA SHIP DESIGN: Your Partner in Modern Conversions
As a full-service naval architecture and marine engineering consultancy (Concept Design → Refit & Conversion Design → Advanced Engineering → Supervision & Project Management → Marine Consultancy & Surveys), we provide end-to-end control under one roof. From the first idea to upgraded sea trials, SENA delivers class-compliant, innovative, and practical solutions tailored to your vessel and operational needs.
- Conversion Feasibility Assessment: Detailed technical and economic evaluation of proposed conversions
- Conversion Design Engineering: Complete design development from concept through production drawings
- Project Management & Coordination: Integrated project delivery with schedule and cost management
- System Integration & Testing: Comprehensive testing and commissioning of all vessel systems
- Regulatory Compliance Coordination: Classification society liaison and regulatory approval management
- Construction Supervision: On-site technical oversight during fabrication and installation
- Sea Trials Management: Planning, execution, and analysis of comprehensive sea trial programs
- Commissioning & Handover: Final optimization, crew training, and operational support
Our expertise ensures that your vessel conversion or refit project is executed with the highest levels of precision, efficiency, and compliance, transforming your existing assets into future-ready vessels.
